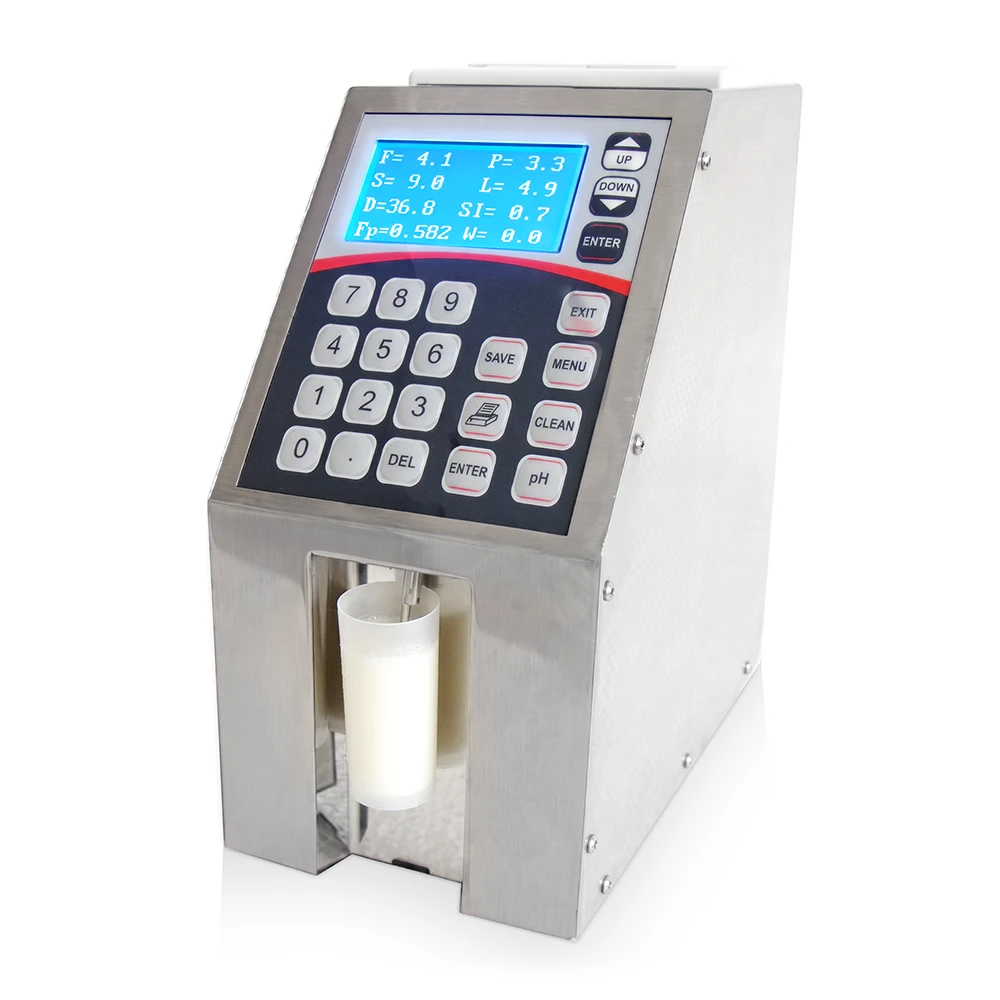

MASTER LM3 - milk composition analyser

Practical milk checks for your daily production

MASTER LM3 analyses milk parameters in 60 seconds. The built-in keypad lets you enter litres and customer numbers, and an optional second peristaltic pump supports automatic cleaning.

Regular checks of incoming milk help organise purchasing, batch records and cheesemaking. This ultrasonic analyser brings the main milk parameters together at one workstation, making it easier to compare successive samples and prepare records for suppliers.

Three calibration channels

Standard calibrations cover cow, goat and sheep milk. Further calibration is possible for UHT, buffalo, pasteurised, mixed or skimmed milk, whey and other milk types and derivatives. Match calibration to the sample type before measurement.

Key features

• Ultrasonic technology and a small milk sample.
• Memory for 500 measurements.
• Peristaltic pump.
• Self-calibration without a computer.
• Low power consumption.

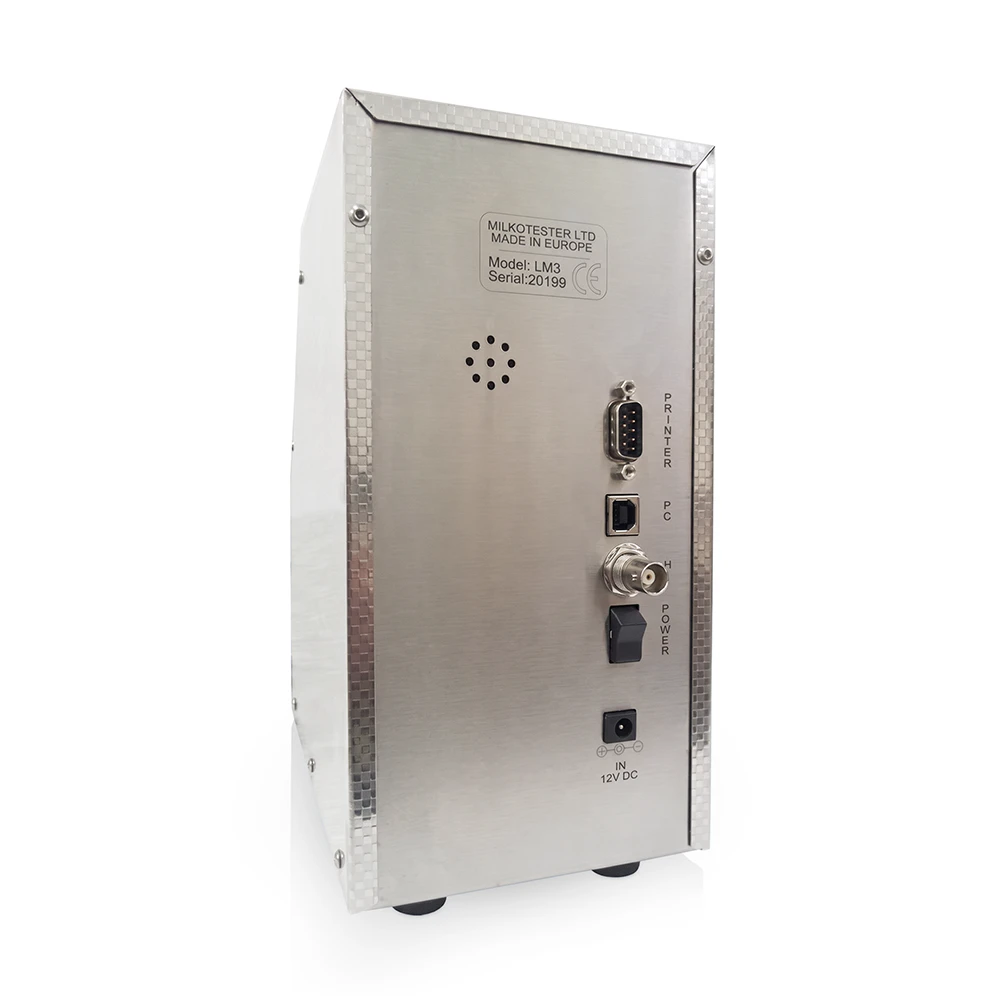

• One RS232 connection and one USB connection to a computer.
• ESC POS printer support.
• Built-in keypad and large graphic display.
• Clock with date and time.
• One-year warranty.
• No acids or other chemical reagents are used during measurement; cleaning still requires the prescribed procedure.

Measuring ranges

Technical specifications

• Milk sample: 20 ml.
• Measurement time: 60 s.
• Sample temperature: 5–40 °C
• Ambient humidity: 0–80% RH.
• Interfaces: RS232 and USB.
• AC power supply: 95–250 V.
• DC power supply: 12 V.
• Dimensions: 11 × 22 × 22 cm
• Weight: 2.5 kg

Optional equipment

• Internal printer for immediate results and paper reports with numerical data and milk quantities.
• pH measurement to determine sample acidity.
• Conductivity measurement.
• Rechargeable battery for field work, up to 8 hours without recharging depending on operating conditions.
• Additional peristaltic pump for automatic cleaning and rinsing.
• USB flash memory to collect and transfer measurement data to a computer.
• Electronic scale for recording the quantity of milk from which the sample is taken.
• Remote display.

Optional equipment is supplied by agreement. The menu and operating instructions are in Polish. European manufacturer; we are the exclusive distributor of MILKOTESTER products in Poland. Follow the documentation for calibration, sample preparation and cleaning.
